This Digital Fully Automatic Water Pump Controller or Water Level Controller Model design for your MCB / Piano type switch Single Phase Motor

digital automatic water pump controller for domestic model 01
digital automatic water pump controller for domestic model 02
digital automatic water pump controller for domestic model 03
digital automatic water pump controller for domestic model 04

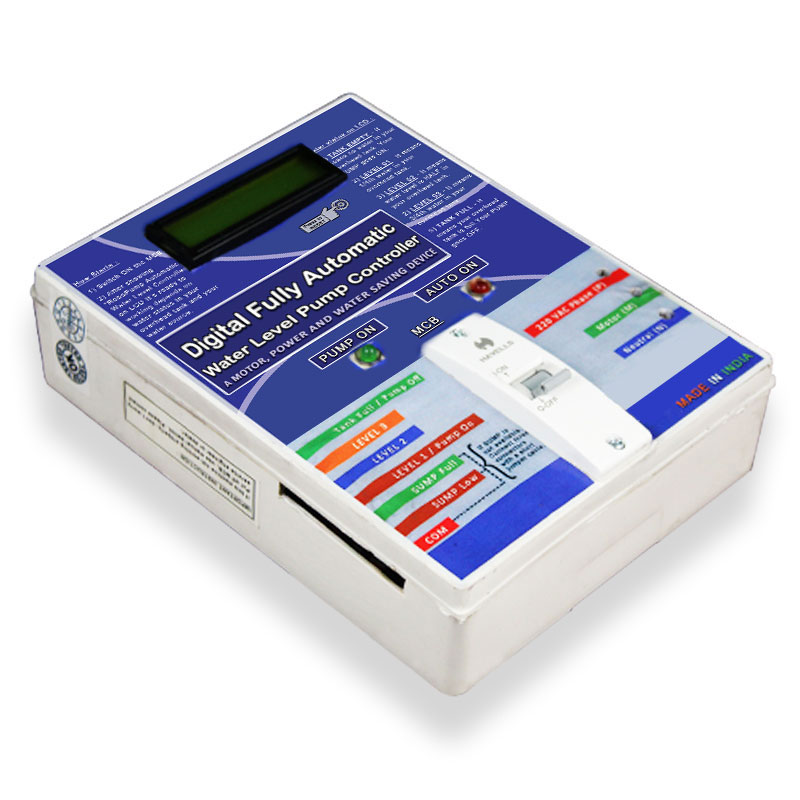

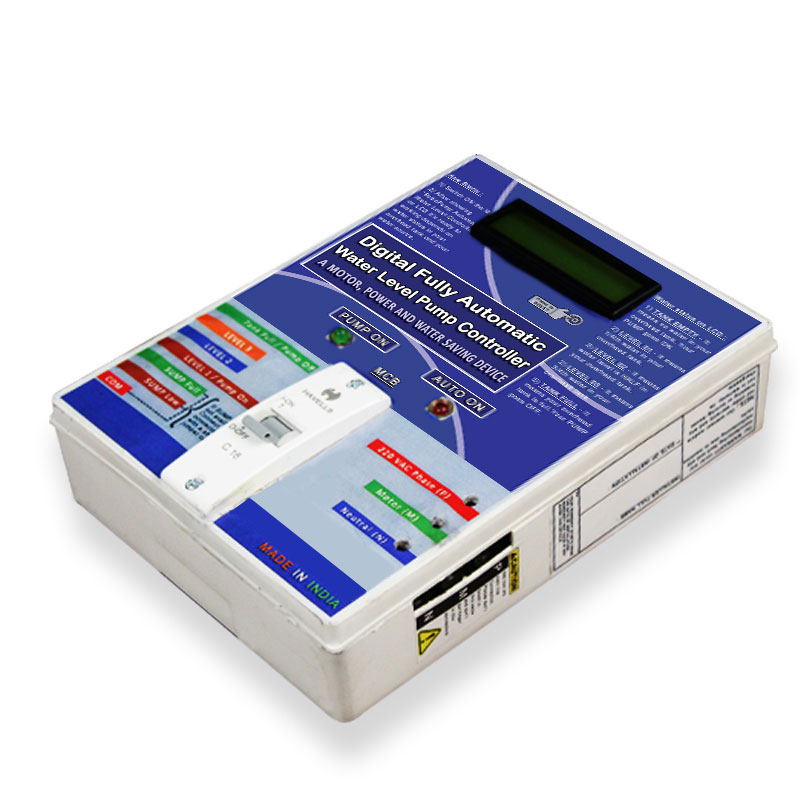

Digital Water Pump Controller Domestic Model
Model Number : Basic-Digital

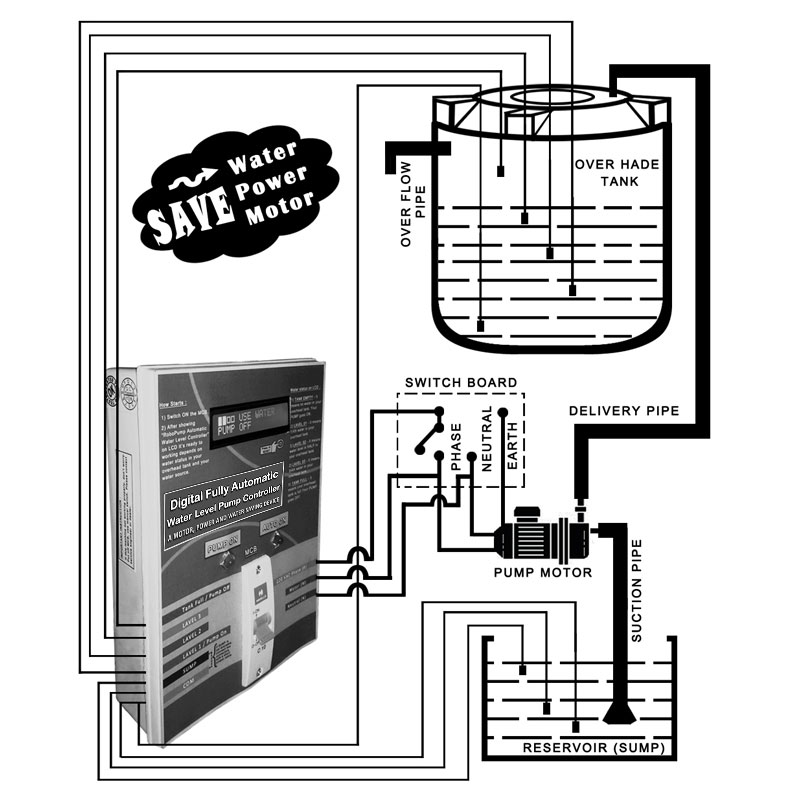

The Basic Digital Model compatible with only MCB / Piano type switch Single Phase Motor. It was continuously monitoring your water status in Overhead Tank and Reservoir both and show the water level on the LCD (Liquid Crystal Display) Display. Its have an auto-switching feature also. Our controller starts your pump when it goes empty condition and the LCD Display shows “TANK EMPTY”. After your Over Hade Tank goes full, the LCD Display shows “TANK FULL” and the controller stops your pump automatically. At the same time if you have a Reservoir (SUMP) and when the water level goes low in your reservoir our controller not to start your pump and stop the pump if it’s running condition. For this condition our controller showing on LCD “Low SUMP”. This feature called "Dry Run Protection". It protects your pump from burnout.

We are newly introduced a saltfree technology to extends your Sensor life. We are used stainless steel sensor prove also but we noticed the salt problem is a common issue for all branded water level controllers. That's why we are using a salt-free technology to reduce this issue and we glad to say successfully resolve this salt or iron problem.

In this model, we are already attached a 16Amp MCB for extra protection of your pump motor.

  • With One Year Replacement Guarantee.
  • With Free Lifetime Support. (Limited Period Offer)

    • Technical Specification

    Supply Voltage 210 - 250 VAC, 50Hz.
    Running Condition Constant
    Compatible with MCB (Miniature Circuit Breaker) / Piano type switch (5 Amp - 25 Amp) Single Phase Motor
    Protection Built-in 16 Amp MCB for your Pump Motor
    Output Constant ON when active
    Contact current rating 40 Amp Max
    Sensor Cable Full Copper Cat5e
    Power Consumption Very low like a Night Lamp
    Monthly Consumption 0.5 Unit
    Dimension 203mm * 152mm * 50mm (approx)
    Weight 720 gm

    Our Product Use For

  • Domestic

  • Flat / Apartment

  • Bungalow

  • Office

  • Hospital

  • School/College

  • Hotel / Restaurants

  • Any Commercial or Non Commercial Place

    Main key features of our Digital Fully Automatic Water Level Controller

    This controller is suitable for MCB / Piano type switch Single Phase Motor.

    LCD Display for showing current status of water.

    LED and Buzer Beep Indication Alart when your Pump is On Condition.

    With Salt/Iron free technology which extends Sensor life.

    Our Dry Run Protection feature also protects your pump motor.

    Our auto-switching feature saves your Water, Electricity Bill, Time and Manpower.
