This Digital Fully Automatic Water Pump Controller or Water Level Controller Model design for your Direct On Line (DOL) Three Phase Motor Starter.

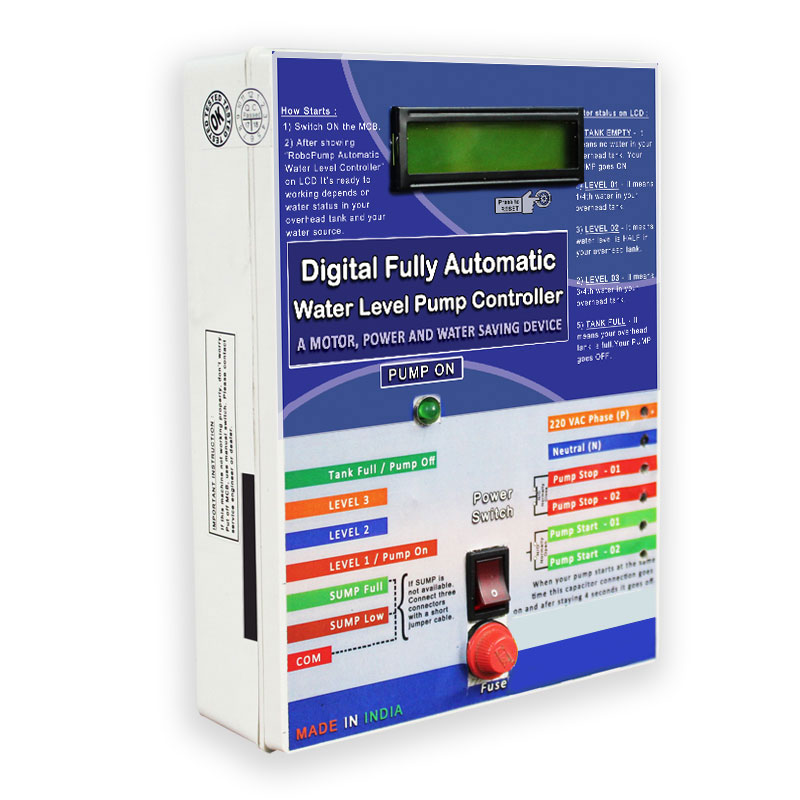

digital automatic water pump controller for three phase motor starter model 01

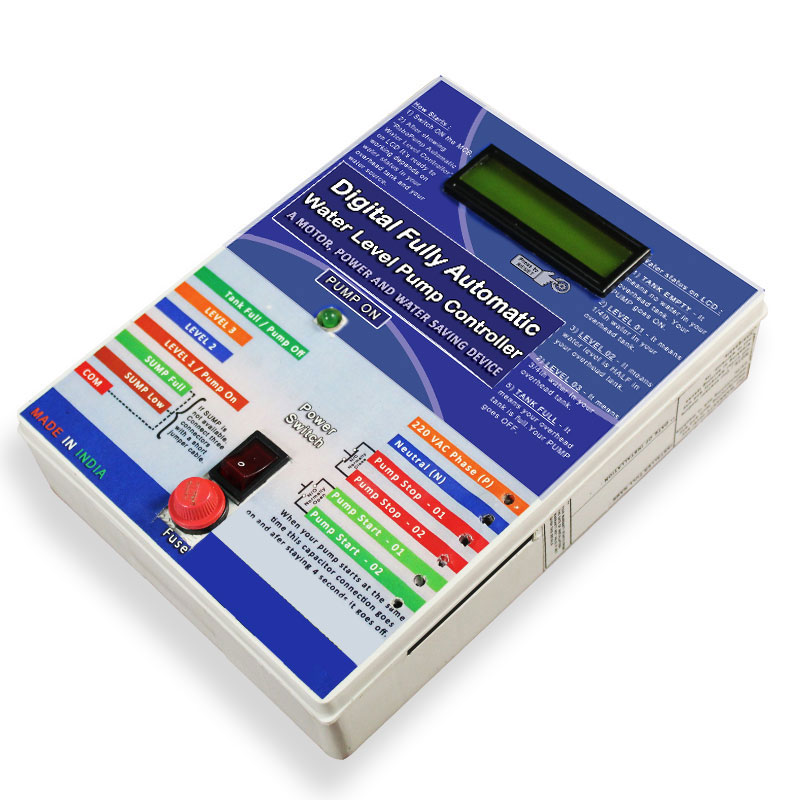

digital automatic water pump controller for three phase motor starter model 02

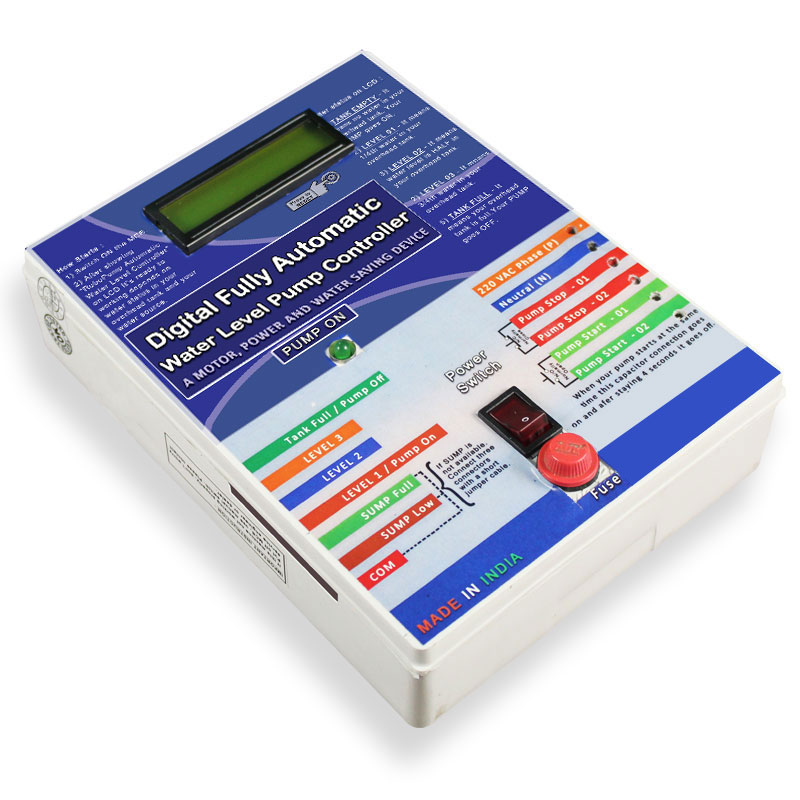

digital automatic water pump controller for three phase motor starter model 03

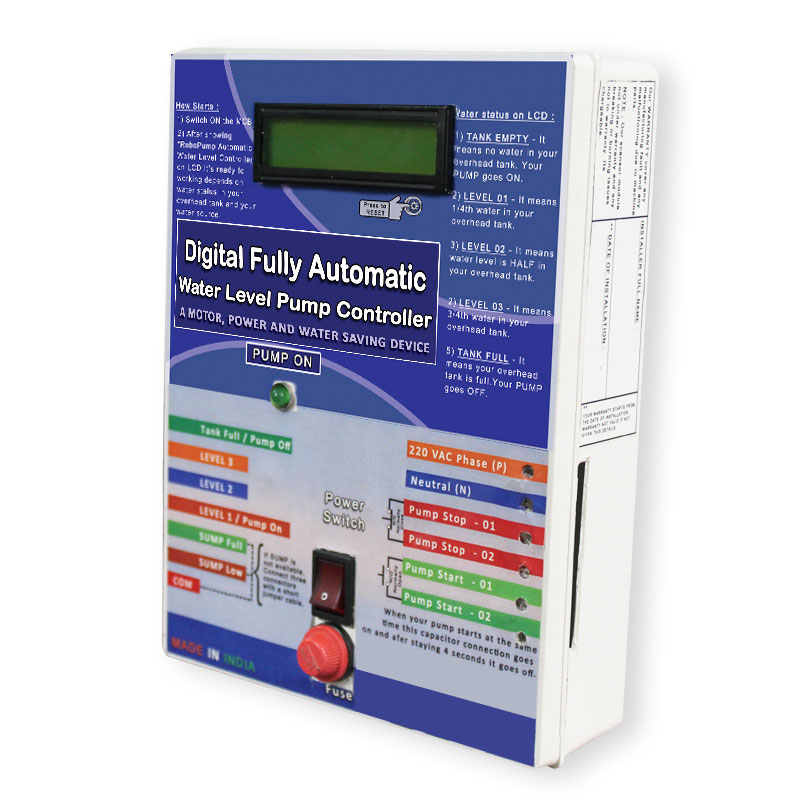

digital automatic water pump controller for three phase motor starter model 04

Digital Water Pump Controller Three Phase Model
Model Number : DOLS-Digital

This controller model compatible with Direct On Line (DOL) Three Phase Motor Starter. It was continuously monitoring your water status in Overhead Tank and Reservoir both and show the water level on the LCD (Liquid Crystal Display) Display. Its have an auto-switching feature also. Our controller starts your pump when it goes empty condition and the LCD Display shows “TANK EMPTY”. After your Over Hade Tank goes full, the LCD Display shows “TANK FULL” and the controller stops your pump automatically. At the same time if you have a Reservoir (SUMP) and when the water level goes low in your reservoir our controller not to start your pump and stop the pump if it’s running condition. For this condition its showing on LCD “Low SUMP”. This feature called "Dry Run Protection". It protects your pump from burnout.

We are newly introduced a saltfree technology to extends your Sensor life. We are used stainless steel sensor prove also but we noticed the salt problem is a common issue for all branded water level controllers. That's why we are using a salt-free technology to reduce this issue and we glad to say successfully resolve this salt or iron problem.

  • With One Year Replacement Guarantee.
  • With Free Lifetime Support. (Limited Period Offer)

    • Technical Specification

    Supply Voltage 210 - 250 VAC, 50Hz.
    Running Condition Constant
    Compatible with Direct On Line (DOL) Three Phase Motor Starter.
    Protection 0.1 Amp Fuse for our controller.
    Output 2 relay contact for Pump Start (N/O) and Stop (N/C).
    Contact current rating 7 Amp for pump Start and Stop relay
    Sensor Cable Full Copper Cat5e
    Power Consumption Very low like a Night Lamp
    Monthly Consumption 0.5 Unit
    Dimension 203mm * 152mm * 50mm (approx)
    Weight 610 gm

    Our Product Use For

  • Domestic

  • Flat / Apartment

  • Bungalow

  • Office

  • Hospital

  • School/College

  • Hotel / Restaurants

  • Any Commercial or Non Commercial Place

    Main key features of our Digital Fully Automatic Water Level Controller

    This controller is compatible with Direct On Line (DOL) Three Phase Motor Starter.

    LCD Display for showing current status of water.

    LED and Buzer Beep Indication Alart when your Pump is On Condition.

    With Salt/Iron free technology which extends Sensor life.

    Our Dry Run Protection feature also protects your pump motor.

    Our auto-switching feature saves your Water, Electricity Bill, Time and Manpower.
