This Automatic Water Level Controller or Water Pump Controller Model design for your Direct On Line (DOL) Three Phase Pump Motor Starter

automatic water level controller for three phase motor starter model 01
automatic water-level controller for three phase motor starter model 02
automatic water-level controller for three phase motor starter model 03
automatic water-level controller for three phase motor starter model 04

Water Level Controller for Three Phase Model

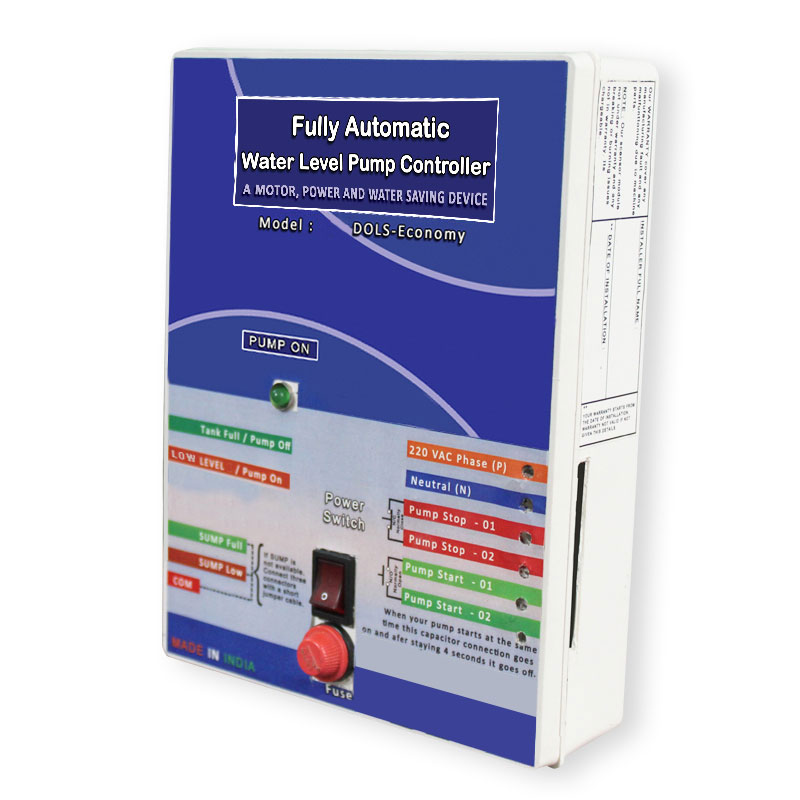

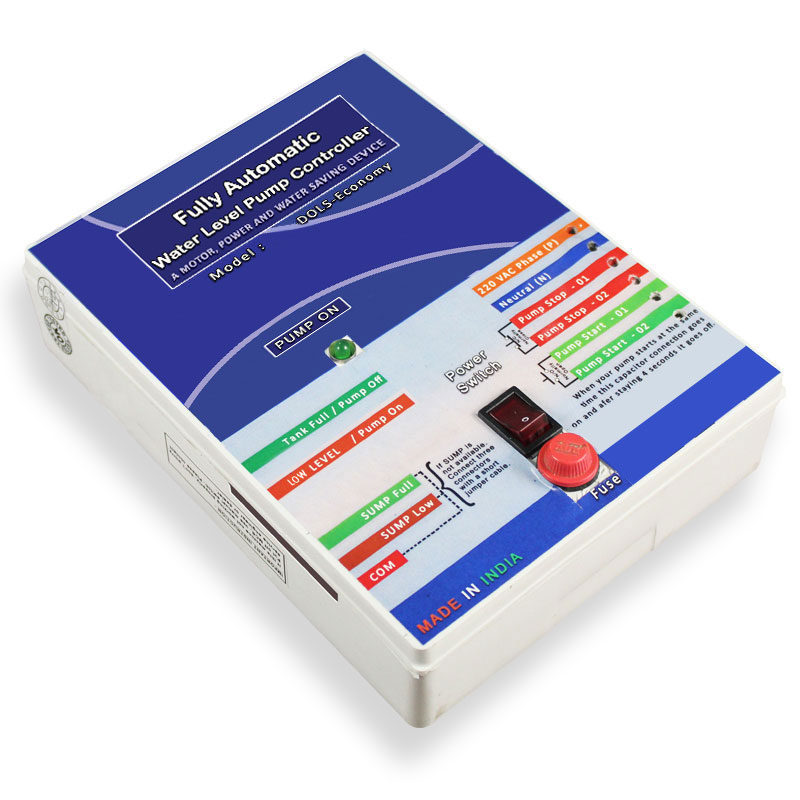

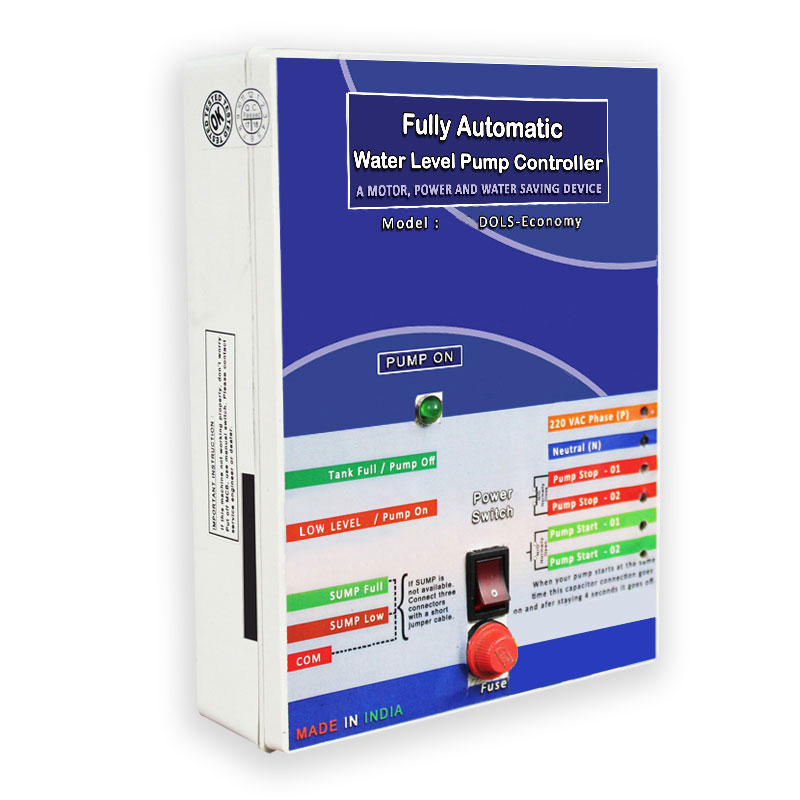

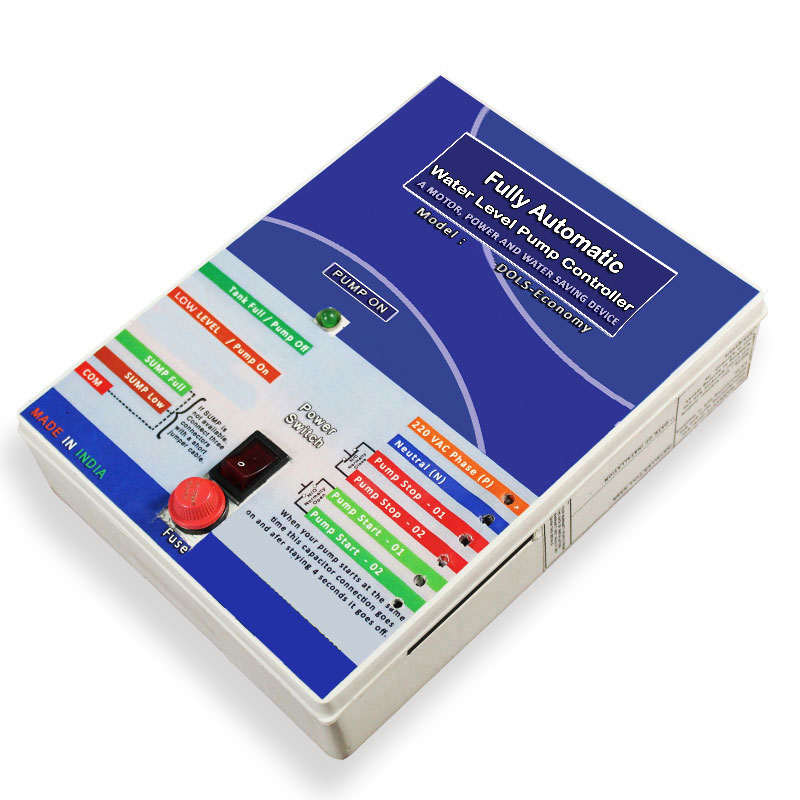

Model Number : DOLS-Economy

This Water Level Controller is compatible with only Direct On-Line (DOL) Three Phase Pump Motor Starter. It is one of the cheapest models for those who want to use Water Level Controller at low cost. It continuously monitors your water status in your Overhead Tank and Reservoir both but no LCD (Liquid Crystal Display) Display has in this model. Its have an auto-switching feature also. Our controller starts your pump when it goes empty condition and when your Overhead Tank goes full, the controller stops your pump automatically. Its has also the "Dry Run Protection". It protects your pump from burnout.

  • With One Year Warranty.

    • Technical Specification

    LCD Display N/A
    Supply Voltage for controller 210 - 250 VAC, 50Hz.
    Running Condition Constant
    Compatible with Direct On-Line (DOL) Three Phase Pump Motor Starter.
    Protection 0.1 Amp Fuse for our controller.
    Output 2 relay contact for Pump Start (N/O) and Stop (N/C).
    Contact current rating 7 Amp for pump Start and Stop relay
    Sensor Cable Full Copper Cat5e
    Power Consumption Very low like a Night Lamp
    Monthly Consumption 0.5 Unit
    Dimension 203mm * 152mm * 50mm (approx)
    Weight 580 gm

    Our Product Use For

  • Domestic

  • Flat / Apartment

  • Bungalow

  • Office

  • Hospital

  • School/College

  • Hotel / Restaurants

  • Any Commercial or Non Commercial Place

    Main key features of our Digital Fully Automatic Water Level Controller

    This controller is suitable for Direct On-Line (DOL) Three Phase Pump Motor Starter.

    No LCD Display for showing current status of water.

    Only LED Indication Alart when your Pump is On Condition.

    With Salt/Iron free technology which extends Sensor life.

    Our Dry Run Protection feature also protects your pump motor.

    Our auto-switching feature saves your Water, Electricity Bill, Time and Manpower.
